Interfacing Arduino with a Telit GM862

May 15th, 2009 · 44 Comments · Arduino, gps, gsm

The Arduino can talk over a wide range of networks. Ethernet, Bluetooth, Wifi, XBEE and GPRS to name the most known. I had a Telit GM862-GPS module laying around, unused for some time already. It has GPRS and GPS capabilities, both accessible with AT commands. So I decided to port some of my code to the Arduino.

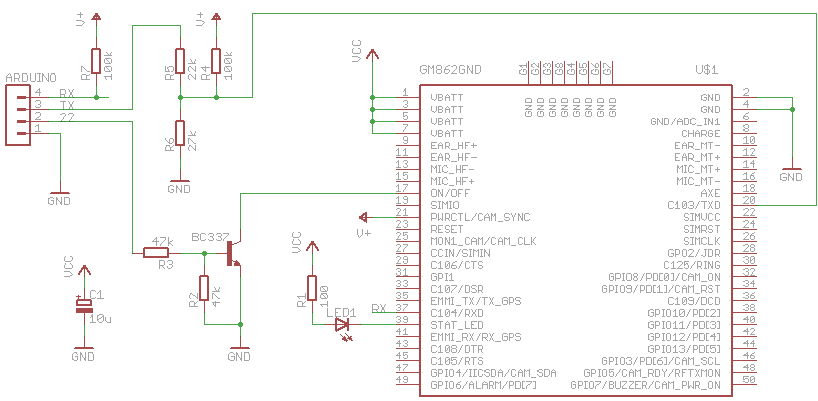

Schematic

Connecting the Arduino Mega to the GM862 is rather easy. Only four connections are needed.

Tx3 – Tx
Rx3 – Rx
Pin 22 – On/Off
GND – GND

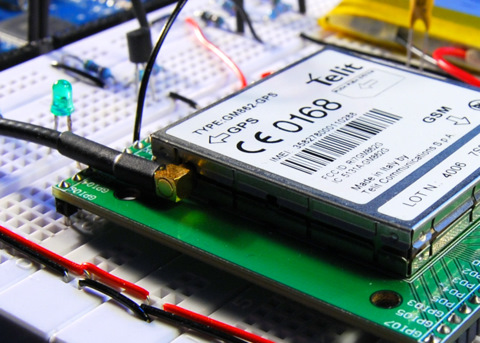

The GM862 is accessed with a breadboard fiendly breakout board from Sparkfun.

The logic pins of the GM862 accept only CMOS 2.8 Volt. For that reason, a voltage divider is needed for the Tx line. Both, Rx and Tx are pulled up to the PWR_CTL line of the module because these pins don’t have an internal pull up resistor.
The on/off line is connected to ground with a transistor.

The bad thing for this setup is the power supply. The module is powered by a LiPo cell (3.7 V with 2000 mAh). The Arduino Mega is powered by the USB port. If I want to make this portable, I have to use two batteries. Or find a better solution. Maybe powering the Arduino with a step-up converter.

Software

First I wanted to use an Arduino Pro mini, that runs on 3.3 V. That would save me from having two different power supplies for the Arduino and the GM862. I tried to connect the Rx/Tx lines to two digital pins and use the NewSoftSerial library. This library enables a second serial port on the Arduino besides the hardware serial port. Unfortunately it wasn’t reliable enough. Sending to the module seems to work well, receiving sometimes did not. I tried it with different baud rates and different Arduinos, 8 MHz and 16 MHz, but that didn’t help. Maybe I did something wrong, but I couldn’t figure it out.
So I switched to my brand new Arduino Mega. I just connected Rx/Tx to one of the hardware serial ports and it worked immediatly.

The following features are implemented:

Starting and stopping the module
Initialization
Sending of SMS
Requesting GPS position and parsing the result
Opening a socket, writing and reading (used to talk HTTP) over GPRS

The software is an really early stage. I focussed most on functionality and less on performance or compact code. The following todos are still open:

Make debugging output configurable
Use of PROGMEM to reduce RAM usage
More compact structure for AT commands
Parse more responses of AT commands. Some are simply issued, without looking at the response

Nevertheless, here is a small snippet, that shows features that are already working. To get it working, you have to replace XXXX with your PIN. For GPRS you have to dig into the module code and adapt the GPRS settings.

/*
 * GM862-GPS testing sketch
 * used with Arduino Mega
 * http://tinkerlog.com
 */

#include "GM862.h"

int onPin = 22;                      // pin to toggle the modem's on/off
char PIN[5] = "XXXX";                // replace this with your PIN
Position position;                   // stores the GPS position
GM862 modem(&Serial3, onPin, PIN);   // modem is connected to Serial3
char cmd;                            // command read from terminal

void setup() {
  delay(10000);
  Serial.begin(19200);
  Serial.println("GM862 monitor");
  modem.switchOn();                   // switch the modem on
  delay(4000);                        // wait for the modem to boot
  modem.init();                       // initialize the GM862
  modem.version();                    // request modem version info
  while (!modem.isRegistered()) {
    delay(1000);
    modem.checkNetwork();             // check the network availability
  }
  Serial.println("---------------------");
  Serial.println("ready");
}

void requestHTTP() {
  char buf[100];
  byte i = 0;
  modem.initGPRS();                   // setup of GPRS context
  modem.enableGPRS();                 // switch GPRS on
  modem.openHTTP("search.twitter.com");    // open a socket
  Serial.println("sending request ...");
  modem.send("GET /search.atom?q=gm862 HTTP/1.1\r\n"); // search twitter for gm862
  modem.send("HOST: search.twitter.com port\r\n");     // write on the socket
  modem.send("\r\n");
  Serial.println("receiving ...");
  while (i++ < 10) {                  // try to read for 10s
    modem.receive(buf);               // read from the socket, timeout 1s
    if (strlen(buf) > 0) {            // we received something
      Serial.print("buf:"); Serial.println(buf);
      i--;                            // reset the timeout
    }
  }
  Serial.println("done");
  modem.disableGPRS();                // switch GPRS off
}

void loop() {
  if (Serial.available()) {
    cmd = Serial.read();
    switch (cmd) {
    case 'o':
      modem.switchOff();              // switch the modem off
      break;
    case 's':                         // send a SMS. Replace with your number
      modem.sendSMS("6245", "your@email.com hello from arduino");
      break;
    case 'w':
      modem.warmStartGPS();           // issue a GPS warmstart
      break;
    case 'p':
      position = modem.requestGPS();  // request a GPS position
      if (position.fix == 0) {        // GPS position is not fixed
        Serial.println("no fix");
      }
      else {                          // print lat, lon, alt
        Serial.print("GPS position: ");
        Serial.print(position.lat_deg);  Serial.print(".");
        Serial.print(position.lat_min);  Serial.print(", ");
        Serial.print(position.lon_deg);  Serial.print(".");
        Serial.print(position.lon_min);  Serial.print(", ");
        Serial.println(position.alt);
      }
      break;
    case 'h':
      requestHTTP();                  // do a sample HTTP request
      break;
    default:
      Serial.println("command not recognized");
    }
  }
}

Log

Here is a log, that I recorded within the Arduino IDE. You can see, how

the modem gets switched on
the modem gets initialized
the version info is requested
it waits until the network is reachable
a GPS position is requested
a SMS gets send
how a HTTP GET is issued over GPRS, it searches for gm862 on twitter

GM862 monitor
switching on
done
initializing modem ...
AT
->ok
AT+IPR=19200
->ok
AT+CMEE=2
->ok
AT+CPIN=XXXX
->ok
done
version info ...
AT+GMI
->buf: AT+GMI
Telit
OK
AT+GMM
->buf: AT+GMM
GM862-GPS
OK
AT+GMR
->buf: AT+GMR
07.02.403
OK
AT+CSQ
->buf: AT+CSQ
+CSQ: 0,0
OK
done

checking network ...
AT+CREG?
->buf: AT+CREG?
+CREG: 0,2
OK
done

checking network ...
AT+CREG?
->buf: AT+CREG?
+CREG: 0,2
OK
done

checking network ...
AT+CREG?
->buf: AT+CREG?
+CREG: 0,1
OK
done

---------------------
ready

requesting GPS position ...
AT$GPSACP
->buf: AT$GPSACP
$GPSACP: 110621.999,5333.9477N,00954.8735E,1.4,66.3,3,22.21,0.10,0.05,150509,08
OK
3
GPS position: 53.565794, 9.914568, 66

sending SMS ...
AT+CMGF=1
->ok
AT+CMGS="6245"
->not ok: AT+CMGS="6245"
>
your@email.com hello from arduino
done

initializing GPRS ...
AT+CGDCONT=1,"IP","internet","0.0.0.0",0,0
->buf:
+CMGS:  35
OK
AT+CGDCONT=1,"IP","internet","0.0.0.0",0,0
OK
AT#USERID=""
->buf: AT#USERID=""
OK
AT#PASSW=""
->buf: AT#PASSW=""
OK
done

switching GPRS on ...
AT#GPRS=1
->buf: AT#GPRS=1
+IP: 10.37.146.251
OK
done

opening socket ...
AT#SKTD=0,80,"search.twitter.com",0,0
->buf: AT#SKTD=0,80,"search.twitter.com",0,0
buf:
buf:
CONNECT
sending request ...
receiving ...
buf:HTTP/1.1 200 OK
Date: Fri, 15 May 2009 11:07:19 GMT
Server: hi
Status: 200 OK
Cache-Control: ma
buf:x-age=20, must-revalidate, max-age=1800
Content-Type: application/atom+xml; charset=utf-8
X-Serve
buf:d-By: searchweb005.twitter.com
Expires: Fri, 15 May 2009 11:37:18 GMT
Content-Length: 4757
Vary:
buf: Accept-Encoding
X-Varnish: 218274860
Age: 0
Via: 1.1 varnish
X-Cache-Svr: searchweb005.twitter
buf:.com
X-Cache: MISS
Connection: close

<?xml version="1.0" encoding="UTF-8"?>
[...]
    </author>
  </entry>
</feed>

NO CARRIER
done

switching GPRS off ...
AT#GPRS=0
->buf: AT#GPRS=0
OK
done

Outlook

Besides some software todos on the list, two things are still bugging me. One is the need of an Arduino Mega because of the hardware serial port. I will try the new version of NewSoftSerial, as soon as it is released. The other thing is the need of two power sources. But that could be solved with the Arduino Mini pro, when the software serial issue is fixed.

Everything else worked well. Now I only need a problem that could be solved with this .

Links and Downloads

Source code: arduino-gm862.zip
Interfacing an AVR controller to a GPS Mobile Phone
GM862 breakout board from Sparkfun
GM862 specs at Telit.
roundsolutions, distributor for GM862 modules.

Add this to: Del.icio.us Digg

44 responses so far ↓

1 Florin // May 15, 2009 at 21:16

That’s cool Alex, I’m working on something similar. I’m connecting a GPS module recovered from a broken GPS to an Asus EEE PC, to create a navigation system. Unfortunately I’m short on time, but as soon as I get some free time, I’ll post it on my blog.
2 AlphaBeta // May 16, 2009 at 14:48

Cool project!

I saw this: ‘Make debugging output configurable’

And could not resist linking:
http://www.arduino.cc/playground/Code/SerialDebugger
3 Alex // May 16, 2009 at 15:21

Thanks for the input.
That might help to clear things up.
4 cmetom // Jun 7, 2009 at 20:43

Cool stuff!

I have gotten back to thinking about my Telit-related projects just last week, and decided switching to arduino might speed up the software-side of development. Did a quick search and you’ve been doing the same thing!

I’m going to work with the 3.3V / 8MHz ‘Arduino Pro’ that Sparkfun sells – this should remedy the problem of needing two voltages and a voltage divider for the UART.

Cheers,
Tom
5 Alex // Jun 8, 2009 at 08:19

Hi Tom,
if you take the Arduino Pro, you still have to take care of the 2.8V level on the logic lines of the telit. But you are right, at least you can have only one supply.
I choose the Mega mainly because it had more hardware UARTs, which makes it easier to debug.

Cheers,
Alex
6 Vincent // Jun 27, 2009 at 16:30

Just out of cutiossity, when you says send a SMS, does that meen that the Arduino can actualy send an SMS to a cell phone?
7 Alex // Jun 27, 2009 at 16:39

Yes, that’s what it means.
8 Sumeet Singh Thakur // Jul 10, 2009 at 12:48

Hi alex,
thanx for the great article
I got a breakout board and telit gm862 module
Connecting everything as per your diagram by making a prototyping kind of shield to fit over arduino mega and telit breakout board on top of shield
I am powering the arduino mega with usb and telit breakout board with 3.3 volt external supply
I am not getting any reponse from telit
It always says -> no reponse . any quick ideas where things must be going wrong ?
9 Alex // Jul 10, 2009 at 14:11

Hi Sumeet,
the Arduino Mega should be powered with 5V or more. I’m not sure if it would run reliable with 3.3V.
Cheers,
Alex
10 Open_Sailing // Jul 13, 2009 at 19:11

[...] Interesting References – GM862 Cellular Quad Band Module – http://note19.com/2008/12/20/how-to-control-gm862-from-arduino/ – http://tinkerlog.com/2009/05/15/interfacing-arduino-with-a-telit-gm862/ [...]
11 Interfacing Arduino with a GSM-GPS Modul - Electronic Circuit and Microcontroller Project // Jul 17, 2009 at 11:59

[...] Arduino and Telit GM862 More detail Arduino and Telit GM862 Project tinkerlog.com [...]
12 Hector Pinedo // Aug 14, 2009 at 21:23

Hi alex,
I got a breakout board and telit gm862 module
Connecting everything as per your diagram by making a prototyping kind
I am not getting any reponse from telit
I send AT and anything came from the telit module
The status LED flashe a couple of times and after he keep off. Is like the module never power on.
Any clue?
13 Alex // Aug 15, 2009 at 09:24

Hi Hector,
be sure your power supply can handle peaks of about 2 amps. These are coming if the module tries to connect the network.
Cheers,
Alex
14 Matt // Sep 2, 2009 at 03:07

It should be possible to reliably use the Arduino Pro with the GM862 if you use the hardware UART for communicating with the GM862 and a softserial serial port for sending the debug messages. You would either use two TTL to serial/usb adapters (one for programming, the second for debugging) and break the hardware UART’s RX line from the main programming serial adapter after programming the Arduino (necessary to allow the GM862 control of the Arduino’s UART RX line) or use one serial adapter and move it from the programming/hardware serial port to the softserial port every time you update the Arduino program.
15 Trent Lloyd // Sep 8, 2009 at 19:04

For everyone that has no luck with this.. I”ve tried this and a few other schematics with my GM862 and simply had no love at all.

I sent it back to SFE for warranty but they said it’s fine so seems this module is super sensitive.. I even checked the outputs with a CRO.

I am going to get a MAX3232 and try that since it worked on a sparkfun rs232 breakout board apparently.

Just thought I’d let you others know!
16 Marek // Sep 25, 2009 at 23:02

Very cool Alex! Thanx.
I’m a bit new to this and I trying ot understand your library GM862. Since you are using an Arduino Mega, why do you use HardwareSerial objects? and not rather Serial1 or Serial2 from the Arduino language?
Cheers, Marek
17 Alex // Sep 26, 2009 at 07:48

Because I can
No seriously, the Mega has 4 serial ports in hardware. These are always preferable over serial ports in software, mostly because the software solution costs more computational power.
Cheers,
Alex
18 Marek // Sep 28, 2009 at 19:30

I agree with that hardware serial ports are better that software ones, but… my question was rather why do you use a library to have access to HardwareSerial objects… instead of using the solution provided by arduino language: Serial1
Mabe to make myself clear:
You use: GM862 modem(&Serial3, onPin, PIN);
[...] modem->print(message);
Why not, simply: Serial3.print(message); ?
Thank you for your help! Marek
19 Alex // Sep 28, 2009 at 20:21

Ah, ok, I see.
I used that to be able to connect the modem to any of the available serial ports, without having to replace every Serialx with Serialy.
20 Marek // Sep 28, 2009 at 22:02

This makes everythink clear. Thank you for your code. It has been of great help to understand how everything works. MAREK
21 Mario // Oct 8, 2009 at 13:33

hello im from brazil and a making a project like this in my curse conclusion work, but i using a siemens modem, so i use a max232 to converto to ttl, my ask is about gps position u declare “Position position” the arduino have a bibliotec about gps positions?
22 Dane // Oct 14, 2009 at 18:55

Is the telit module capable of making and receiving calls?

response would be awesome
23 Alex // Oct 16, 2009 at 18:00

Yes, it is. You can check the datasheet for more details.
24 Alex // Oct 16, 2009 at 18:08

Mario, Position is defined in GM862.h.
25 ruZZ.il // Oct 19, 2009 at 01:59

Great stuff! I’ve just been researching the 862 as a module of a project, likely to be paired with the Arduino Mega, too. Kind of going OnStar-ish. Glad to see your progress.
26 manson // Nov 13, 2009 at 12:30

Hi Alex,
This page that you made is sooooooo helpful!! Thanks a lot, but I have a question though. When I put the ON signal to the telit, I am supposed to wait until a message “DONE” is received or what message is received when it is turned on successfully?

One last thing, as I connected the module to the 3.3 volt, there was a led on the mikroelektonika board that turned on, and for the on signal I just put a a grounded push button, and then I clicked on it for more than one second and then removed my hand. But no luck when I try to call the module as the operator says that the phone is turned off or not available. so is there like a special command that I should send after I turn it on or what?

Thanks!
27 Alex // Nov 13, 2009 at 20:05

Hi manson,
the code does not really check, if the modem gets turned on, it just pulls the ON/OFF line down.
Switching in on with a simple button should work, maybe 3.3V is not enough, the modem is specified for about 3.7V.
Cheers,
Alex
28 manson // Nov 14, 2009 at 14:37

Thanks Alex for your fast reply,
I did as you told me and I connected 3.8v to the module, and I also connected the STATUS_LED to 1 kohm and then to the 3.8v but when I plug in the power, and press on the switch for 1 to 2 seconds and release the STATUS_LED doesn’t flash at all, does this happen to you as well or not??

And how can I connect the PWRMON pin to a LED to see if the module even turned on or not??

THANKS MAN!!
29 manson // Nov 14, 2009 at 15:05

Once Again!!
I did a mistake, as I connected a 1kohm with the LED… HOW STUPID AM I!!
Now, when I put the ON Signal low for one second the the LED_STATUS goes blinking……
AWESOME
But it blinks for 5 or 8 times and then after that it turns off. And in the datasheet it says it should blink every 3 seconds.. So what is wrong here???

YOU ARE THE MAN ALEX!!!
THANKS soo much for your help
30 Alex // Nov 14, 2009 at 17:44

Hi manson,
after starting the module, it tries to connect to the GSM station. For that it needs up to 2 A. If your battery is not able to supply that current, the module turns off.
Cheers,
Alex
31 Arduino GPS and GPRS Interface // Nov 17, 2009 at 11:27

[...] For more information, please visit this page. [...]
32 Seymour // Nov 19, 2009 at 13:06

Hi,
Does anyone know if there is a source of cheaper breakout board (inc. connector) for GM862-GPS compared to Sparkfun’s ?
33 Seymour // Nov 20, 2009 at 13:43

Hi,
I got a breakout board from Sparkfun and a GM862-GPS and try a simplest circuit to see if it boot up. The test configuration has 3.8V power supply (current limit at 3A) connect to Vcc, all other pin are open and a switch is connect from On/Off to ground. It doesn’t run when I push the switch (current is still zero). I also try the same test config with DTR pull-up and RTS pull-down by 1Kohm (to mimic the behavior on eval board), but the module still doesn’t run. The same GM862GPS module works OK on Sparkfun USB eval board. If I use the USB eval board as a stand-alone and feed 3.8V to Vcc pin, everything is OK (power suplly shows about 40-70mA idle). Does anyone know what could be the problem? Does it mean the connector on the breakout board is bad (it’s a brand new one I just got from Sparkfun)?
Thanks a lot and happy tinkering,
Cheers
Seymour
34 Alex // Nov 20, 2009 at 15:59

Hi Seymour,
do you have all VCC and GND pins connected?
Cheers,
Alex
35 Seymour // Nov 21, 2009 at 10:26

I got the breakout board up and running. The culprit is a tiny piece of tape sticking inside the connector. I guess this is what called “vacuum pick-up tape”. The USB eval board doesn’t have it (both board came in the same box), the breakout board does. After removing it everything is OK.
Does anyone know a source of cheaper breakout board ($30 is a bit high and I need a few dozens) and cheap GM862, with and without GPS?
A more general question is that if we have a new design with GSM and/or GPS now, which options should we use? Out of GM862, I’m also playing with Libelium Arduino GSM shield (based on Sagem Hilo module) and a few GPS modules (MTK, SIRF, Skytraq chipset) from Sparkfun and others. The size of Sagem Hilo is amazing (~1/3 the surface of GM862) but again, with my limited soldering and PCB skill I will need breakout board for it too if I decide to go with it.
Thanks all and happy tinkering,
Cheers,
Seymour
36 James // Dec 13, 2009 at 22:45

Hi
thanks alot for this topic

I have one problem after connecting everything
the led blinks after turning it on for 6-9 times and it shutdown directly after that

I supplied 3.8v and the current around 2.2 A

I am afraid of connecting it to more current because I didn’t find the maxcurrent in the gm862 dtasheet

so is it a power problem!

can you please suggest something to fix this problem?

Thanks again
37 Alex // Dec 14, 2009 at 01:20

Hi James,
another thing that often goes wrong, it the capacitor behind your regulator. This one has to have a low ESR value to be able to supply the current fast enough.
Cheers,
Alex
38 Peter // Dec 17, 2009 at 11:12

Hi,
I wanted to try this code (I use arduino 0017) but I can’t compile it? I get this:

o: In function `GM862::isOn()’:
multiple definition of `GM862::isOn()

Any idea what went wrong? By the way, if I don’t want to use serial “feedback”, can I write the responds to a LCD so I don’t need arduino mega?

Regards,
Peter
39 Alex // Dec 17, 2009 at 11:50

Hi Peter,
works for me, just re-verified (on OSX).
Maybe accidently mangled one of the include lines?
And yes, it should be possible to use a Duemilanove, but then you have to rewire your setup for every upload.
Cheers,
Alex
40 3dotter // Jan 7, 2010 at 14:49

Hi Alex,

Did you already try the same with the newest NewSoftSerial library (instead of 2 hardware serial ports)? Would be very interesting! What changes are necessary in your code when using this?

Best wishes,
3dotter
41 Alex // Jan 8, 2010 at 12:19

Hi 3dotter,
no, I’m sorry, haven’t tried that yet.
Cheers,
Alex
42 Donato Colantonio // Jan 11, 2010 at 08:02

Hi , could i use an Arduino duemilanove with this scheme? I have to change serial3 with serial , it is right or i am costrettoforced to use an Arduino mega?thanks Donato
43 Franck // Jan 25, 2010 at 12:45

Hi Alex,
Same that Peter, I ‘m trying the code (I use arduino 0017) I get this: o: In function `GM862::isOn()’:
multiple definition of `GM862::isOn() /tmp/build6991673787891400230.tmp/test_gm862/GM862.cpp.o:/home/me/Desktop/arduino-0017/hardware/libraries/test_gm862/GM862.cpp:12: first defined here

Any idea what went wrong?
I’m using too an Arduino mega and a telit gm862 gps.

Thanks for your help.

Franck
44 Alex // Jan 26, 2010 at 00:12

Hi Franck,
I think I know what went wrong. Although this looks like a lib, it is not. Well, it could be.
Please place all files in another directory (not in /arduino/hardware/libraries) and it should compile fine.
Maybe, if I find some time, I will make it a real library.
Cheers,
Alex
